Shells - Deformation and stress

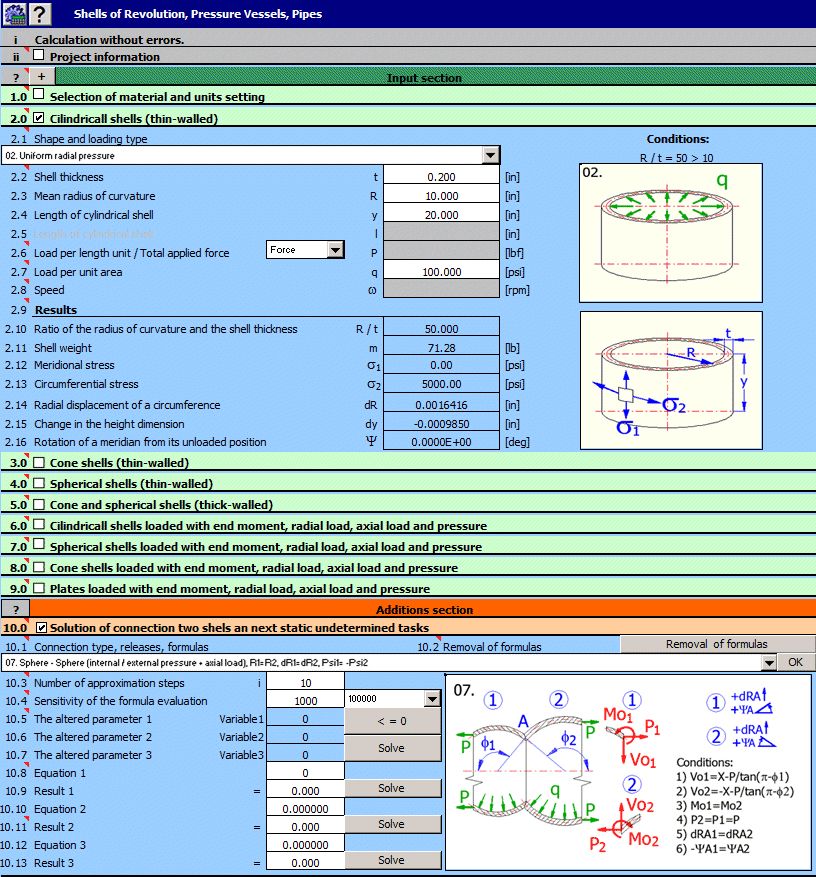

Screenshot of MITCalc Shells 1.13

MITCalc Shells 1.13


Author:

MITCalc


Supported languages: English, Chinese, ChineseSimplified, ChineseTraditional, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovak, Spanish, Swedish, Turkish
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Wind
Price: $25.00
The calculation concerns solutions of pressure vessels and their components. The calculation solves deformations and curves of stress in rotational shells loaded with axial force, pressure, radial force and a bending moment. This program is intended for homogeneous shells of identical thickness and a single material. The calculation also enables solutions for connecting two shells of different parameters (thickness, material, dimensions...).
The program enables:
- Calculation of cylindrical, conical and spherical thin-wall shells.
- Calculation of a cylindrical and spherical thick-wall shells.
- Calculation of a round plate.
- Selection of various loading methods (joint, force, moment, rotational, load with fluid...).
- Calculation of deformation, radial shift, moment and stress in any point.
- Visualisation of charts with curves of the calculated values.
The calculation uses the data, procedures, algorithms and information from the professional literature (Roark formulas, Machinery's Handbook 26th, Teorie desek a skorepin [doc. Ing. Ladislav Subrt, CSc.] and others)
download free trial

Free MITCalc Shells download - 3.5 Mb
MITCalcShells01_64.exe

Keywords: pressure vessels, shells, cylindrical, conical, spherical, round plates, loading, deflection, slope, moment and stress, safety, Roark formulas
