Area characteristic of profiles
|
MITCalc Profiles Calculation 1.20
Author:
Supported languages: English, Bulgarian, Chinese, ChineseSimplified, ChineseTraditional, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Wind
Price: $16.00
|
|
|
|
|
|
The calculation solves area characteristics of profiles created in a simple graphic editor and mass characteristics of solids created by extrusion or rotation of the profile. Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the following tasks:

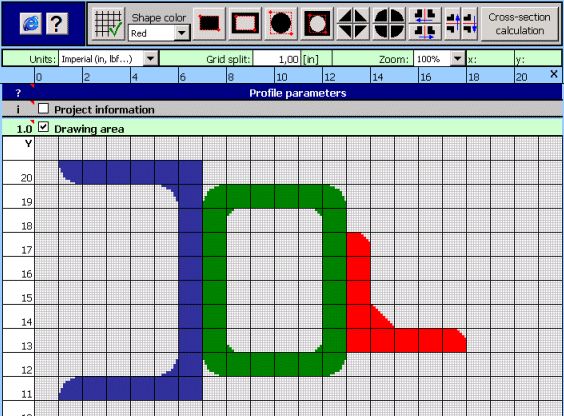

- Creation of a profile in a simple graphic editor.
- Calculation of area characteristics (Ix, Sx) for main axes passing through the centre of gravity.
- Calculation of area characteristics (Ix, Sx) for randomly turned axes passing through the centre of gravity, including a graph.
- Calculation of characteristics for the turned axes which pass through a random point.
- Calculation of volume and mass characteristics (V, m, Im) of solids created by extrusion or rotation of the profile.
This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others
|
Free MITCalc Profiles Calculation download - 1.66 MbMITCalcSections01_64.exe
|
| Keywords:
area characteristic, profile characteristic, mass characteristic, profile editor, profile design, graphics editor, profile extrusion, profile rotation |
|
|
|
|
|
