logic function minimization software

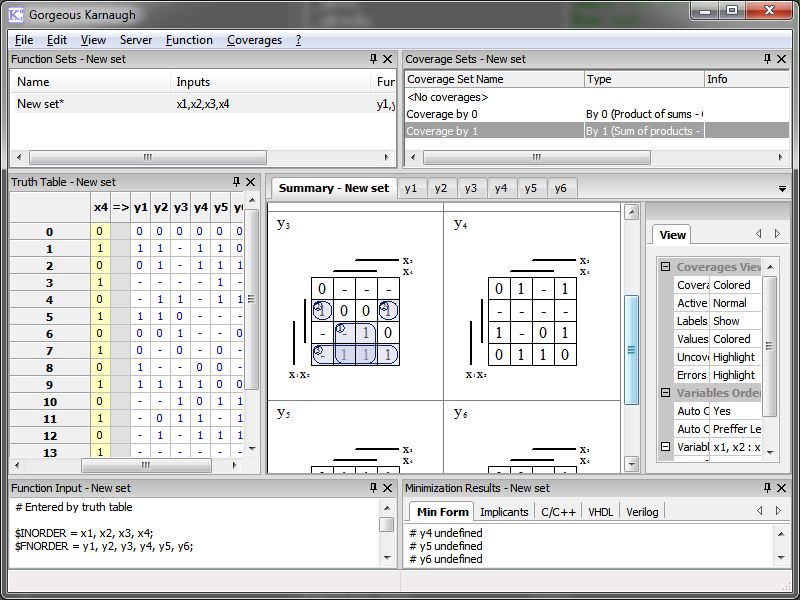

Screenshot of Gorgeous Karnaugh Free 0.91

Gorgeous Karnaugh Free 0.91


Author:

purefractalsolutions.com


Supported languages: English
Supported OS: WinXP / WinVista / WinVista x64 / Win7 x32 / Win7 x64 / Win2000 / Windows2000 / Windows2003 / WinServer / Windows Vist
Price: Free
Gorgeous Karnaugh software:
1) Removes slow, tedious and error prone pen and paper from your life;
2) Gives you a pretty good logic simplification tool;
3) Supports definition of logic function using truth table, from analytic form or by direct editing karnaugh maps;
4) Supports "Dont Care" condition;
5) Supports up to 12 variables (really this is limited only by computer speed and display resolution);
6) Gives "Automatic max coverage lookup" feature for best minimization;
7) Supports "Espresso" logic functions minimization tool;
8) Gives random function generation for education purposes;
9) Represents minimization results in "Implicant" table;
10) Automaticaly calculates function costs (by Quine);
11) Supports multiple output formats - analytic form, C/C++ code, VHDL/Verilog code;
12) Has clipboard support for best K-maps representation in thesis and degree projects;
download free trial

Free Gorgeous Karnaugh Free download - 1.75 Mb
gkfree-0.91-windows-x86.exe

Keywords: karnaugh map, truth table, minimization, logic function minimization, logic function, minterm, maxterm, product of sums, sum of products, boolean algebra functions, karnaugh map program, karnaugh map logic
