Sheet metal unfolder for AutoCAD, GStarCAD

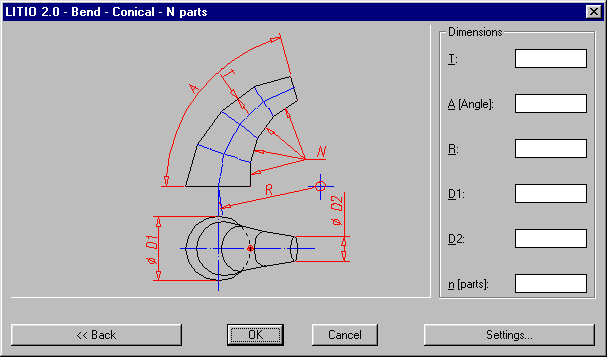

Screenshot of LITIO2 3D Sheet metal unfolding soft 2.0.6

LITIO2 3D Sheet metal unfolding soft 2.0.6


Author:

LITIO


Supported languages: English, Spanish
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / WinVista / WinVista x64
Price: $88.00
LITIO is a sheet metal fabrication program that calculates flat (unfolded) sheet development of ducts, rectangle to round transitions, cylinders, cones, pipe intersections, connections, bifurcations, elbows, etc. For HVAC, hoppers, cyclones, dust extraction, ducts, conveying systems, silos, piping, etc. To draw your sheet metal developments directly in AutoCAD R2000 and later (2019), GStarCAD, BricsCAD & ZWCAD (no need to DXF import/export).
For sheet metal fabrication: roll, bend, and fold your patterns.
Steps of use: First select the 3D surface you want to unfold. (You can select: either inside, outside, or mid cross sectional dimensions and/or height specifications; to draw or not the 3D surface, and the unfolded sheet as a mesh [to help you when bending the sheet] or as 2D contour [to ease cutting]; the precision of the calculation of the developments).
Metric Units/Imperial units: the program automatically sets the units according to the units used in the current drawing session.
After finishing the input of parameters, the program draws the 3D object and the respective development.
Afterwards, you can use the 2D developments for NC CAM cutting (plasma, laser, etc.) or manual cutting, by plotting them 1 to 1 (1 d.u. = 1 mm or 1 d.u. = 1 inch) on paper, and using these templates to mark the metal sheet and cut it.
Check the right download file for your CAD system. Go to http://www.litio.si/download.htm
There are LITIO software versions available for:
* AutoCAD R2000 and later (2019) [no LT; no Academic],
* GStarCAD,
* BricsCAD [v.11 and higher (either Classic, Pro and/or Platinum). It does not need BricsCAD's Sheet metal module.], &
* ZWCAD [ ZWCad v.2017 and higher. It does not need ZW3D.].
download free trial

Free LITIO2 3D Sheet metal unfolding soft download - 1.35 Mb
litio3d.zip

Keywords: sheet metal, sheet, metal, square to round, rectangle to round, AutoCAD, GStarCAD, BricsCAD, ZWCad, 3D, hvac, parametric, development, transition, unfold, unfolder, bend, bender, fold, roll, patterns, templates, sheetmetal, fittings, tube, pipe, duct, silo, hopper, blech, abwickl
