Design and strength check of bevel gear
|
MITCalc - Bevel Gear Calculation 1.15
Author:
Supported languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Supported OS: Win95 / Win98 / WinME / WinNT 3.x / WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Tablet PC Edition 2005 / W
Price: $36.00
|
|
|
|
|
|

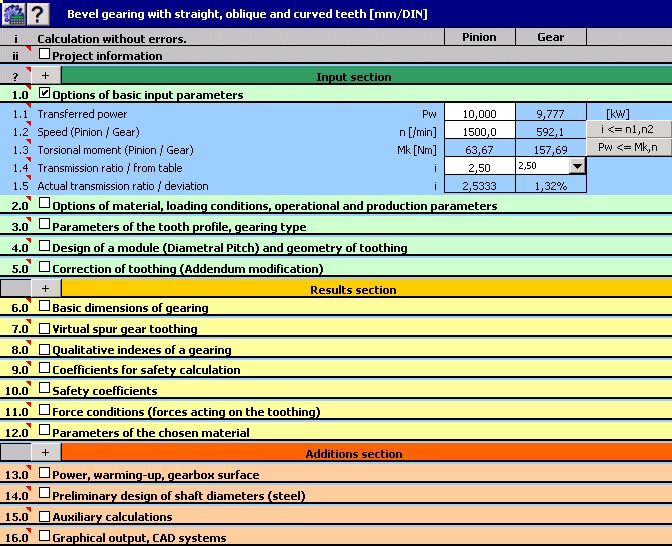

Geometric design and strength check of bevel gear with with straight, helical and curved toothing. Application is
developed in MS Excel, is multi-language and supports Imperial and Metric units and solves the following main
tasks:
- Calculation of straight, helical and curved toothing.
- Automatic design of a transmission with the minimum number of input requirements.
- Design for entered coefficients of safety (static, dynamic).
- Calculation of complete geometric parameters (including corrected toothing).
- Calculation of strength parameters, safety check.
- Supplementary calculations (calculation of parameters of the existing gear, temperature rise, design of shafts)
- Optimization of parameters (dimensions, weight, volume, transmission ratio)
- Support of 2D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD) and 3D CAD in full
calculation package (Autodesk Inventor, SolidWorks, SolidEdge, Pro/E).
The calculations use procedures, algorithms and data from standards ANSI, ISO, DIN, BS and specialized literature.
Used standards: DIN 3971, DIN 3991 Kegelradern 1-4, ISO 6336 1-3, DIN 3965 Toleranzen f??r
Kegelradverzahnungen 1-4, ISO 1328, DIN 3990, ANSI B6.1-1968, AGMA 2001-C95, AGMA 908-B89/95, AGMA
2003-A86/88, AGMA 2005-B88 and others.This module is a part of MITCalc - Mechanical and Technical
Calculation Package for gear, belt and chain drives, bearings, springs, beam, shaft, bolt connection, shaft
connection, tolerances and many others
|
Free MITCalc - Bevel Gear Calculation download - 1.77 MbMITCalcBGear01.exe
|
