Generate pipe cutting template pattern

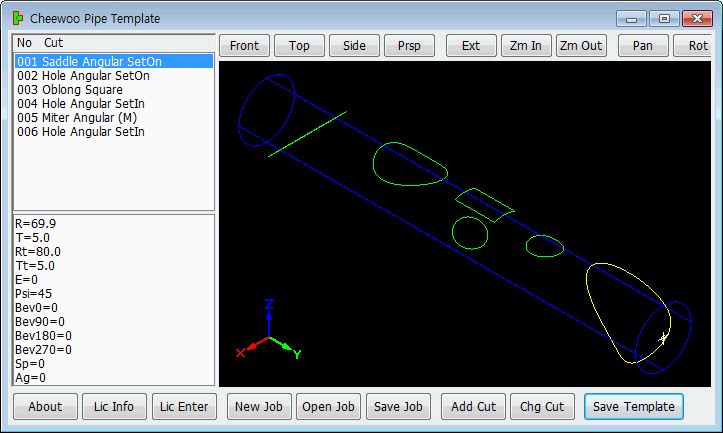

Screenshot of Cheewoo Pipe Template 2.4.1002.1008

Cheewoo Pipe Template 2.4.1002.1008


Cheewoo Engineering

Supported languages: English, Korean
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Wind
Price: $499.00
Automatically generate pipe cutting template pattern for manual 3D pipe profile cutting job. Various pipe branch cutting patterns, trunk cutting patterns and complex cutting patterns template can be generated by using simple parametric input method. By using change cut menu, each cutting path can be added and / or deleted with easy. Also every cutting paths are shown in the program window. Current state can be saved as a job file, and also add any job file into current state to make new job. Current cutting path can saved 1:1 size ratio DXF template file to make template print out. Resolution of the cutting path or divide number can be set in the setting menu by user. Requires Windows 2000 or above, RAM512 MB,10MB HDD or above.
download free trial

Free Cheewoo Pipe Template download - 3.89 Mb

Keywords: Pipe Template, Pipe Joint Template, Tube Template
