Flowcharts,Trees for C/C++ Code - Base

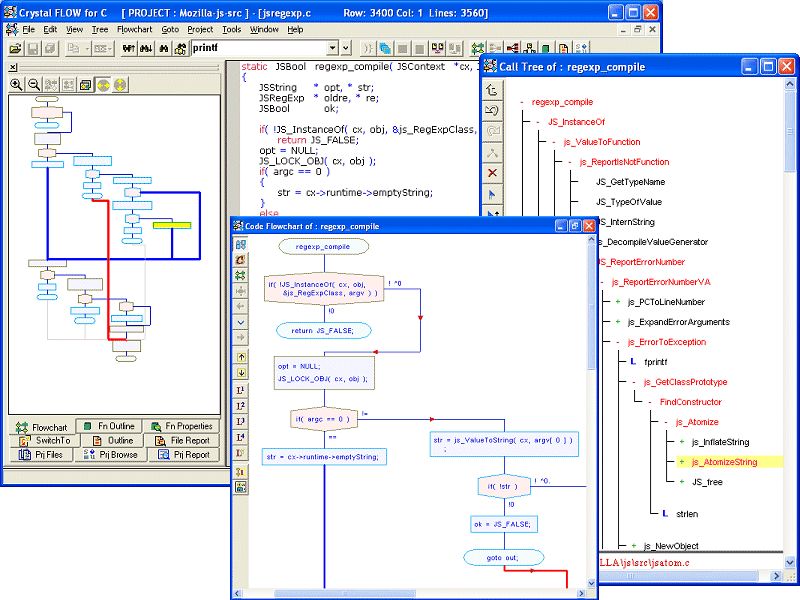

Screenshot of Crystal FLOW for C 4.60

Crystal FLOW for C 4.60


Author:

SGV Sarc Inc


Supported languages: English
Supported OS: WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Vista Starter / Windows Vista Home Basic / Windows Vista
Price: $49.00
Understand Code in Less Time
Create Flowchart from Source Code. Get a clear view of the code with Flowcharts.

Inherited legacy code?
A new member of the team?
You will be up to speed in significantly less time.

Verify correctness of function logic. Detect errors. Use Flowcharts for faster Code-reviews.

Multiple flowchart flavors ??“ level, optimal, loop and conditions, area wise.
Code & Flowchart Synchronization while browsing
Comment flowcharts for a wider audience.
Export flowcharts to BMP/JPEG/VISIO formats.
Code-only, Comment-only and Code+Comment flowcharts.
Print large flowcharts in a single page.

Code is Easy-to-read:
Auto-Formatting of Code and Comments. Not just indenting and line wrapping.
Line up object-names in successive declarations.
Line up assignment operators in assignments.
Split and indent long expressions as per operator precedence
Transform hard-to-read code into very readable code.
Improved code readability. Detect errors easily

Other features
Rich Call/Caller Trees, Include/Include By Trees, Paths - Function/File/Class/Project Level, lPremium Code/Comment Browsing

Project Level - Word/Object/Modified Object/Regular Expression/Lexical Search
Software Metrics - McCabes, Halstead
Stack and Object Size

HTML documents -source+comments (Javadoc like!). No need to maintain documents - just comment the code using Crystal REVS editions. Cross-reference for all identifiers, Color Coded Metrics.
Import VC++. Visual Studio.Net, Borland projects
Language Extensions, Keil Compiler Support
SCC Integration

Editions:
DataFlow: Rich Trees, Object DataFlows, CallFlows, Flowchart inline expansion, Add-On - document generation

Docs: Comprehensive docs with flowcharts, Trees, Source Code & full browsing.
Professional: Features of all editions + Rich Trees, Object/Stack Size, Data Dependency, Custom Symbols, Source Code Publisher, Batch output;
Add Ons -> Document Generation, Command Line Mode
download free trial

Free Crystal FLOW for C download - 12.81 Mb
crystal_flow_c_setup.zip
