UCC CAD Component Kit 4.0
Author:
Supported languages: English, Chinese, ChineseSimplified
Supported OS: Win95 / Win98 / WinME / WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Vista Starter / Windows Vista Home B
Price: Free
|
|
|
|
|
|

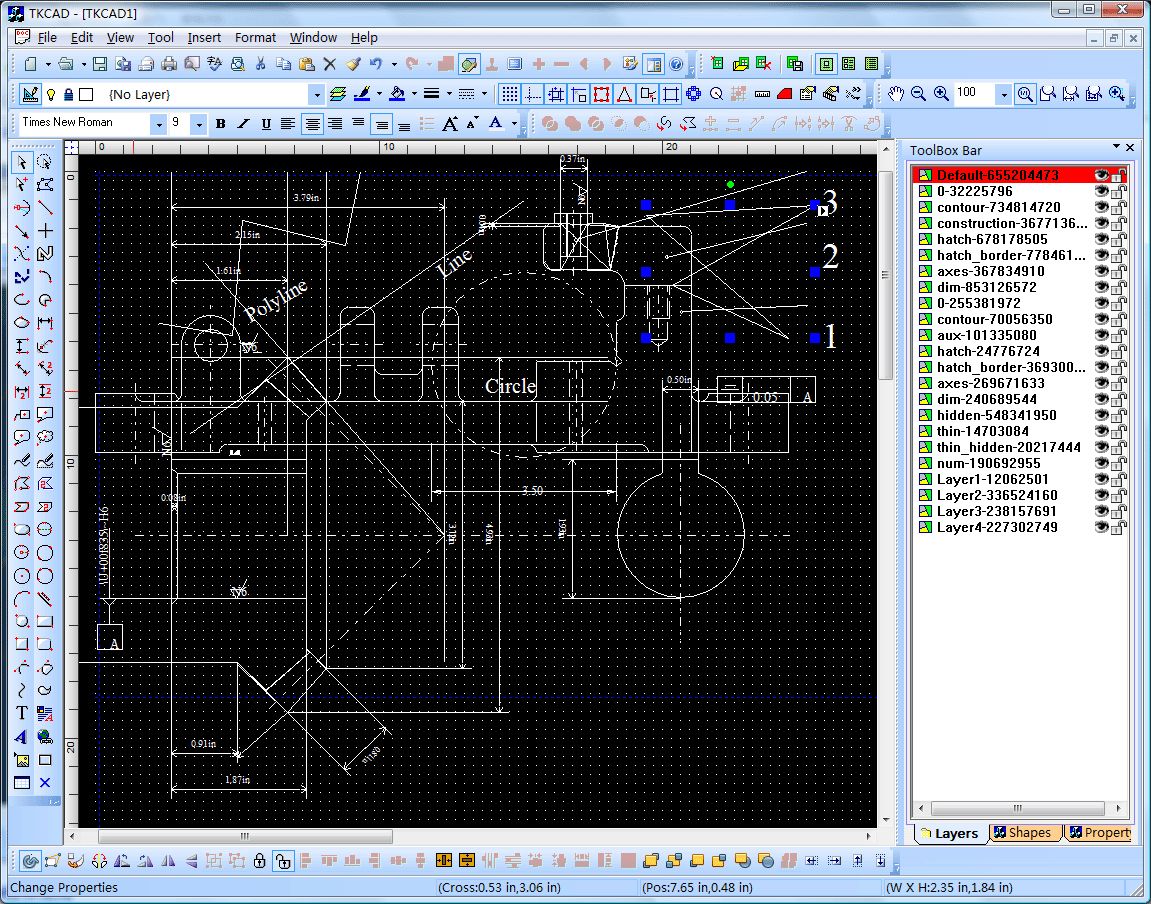

UCanCode CAD VC++ Extension Library and CAD ActiveX Control!
Rich, custom GUIs for demanding applications
Equip demanding applications with user interfaces that are highly customized and visually rich. XD++ Visualization Component Suite helps you build better displays, fast:
High-performance 2D graphics
Powerful GUI builder
Shorter development time
Reduced maintenance costs
Customizable business graphic objects, charts and diagrams.
support multiple layers drawing.
support import autocad's DXF file.
support measure distance between a list of points.
support measure area.
support draw circle or ellipse with two or three points.
supports drawing multiple kind of dimension shapes.
Printing and preview.
Export with jpeg or bitmap file.
Most important, it is written with 100% VC++/MFC and ships it's full source codes.
etc.
1. Can be called with any C#.NET, Java, Delphi or VB languages.
2. Can be used by web.
3. It is based on UCanCode leading CAD solution, all the features of UCanCode CAD Solution can be called with this CAD ActiveX Control.
4. It supports DXF loading, layer, and many kind of advance CAD features.
5. All the features can be full customized.
6. The source codes of this cad control can be purchased with E-XD++ Enterprise Suite.
7. With our consulting service, we can help you do any modify with this cad ocx control to meet your own specify requires.
|
Free UCC CAD Component Kit download - 488 KbCAD_DRAW_COMPONENT.zip
|
