EWDraw is a powerful vector graphics ActiveX

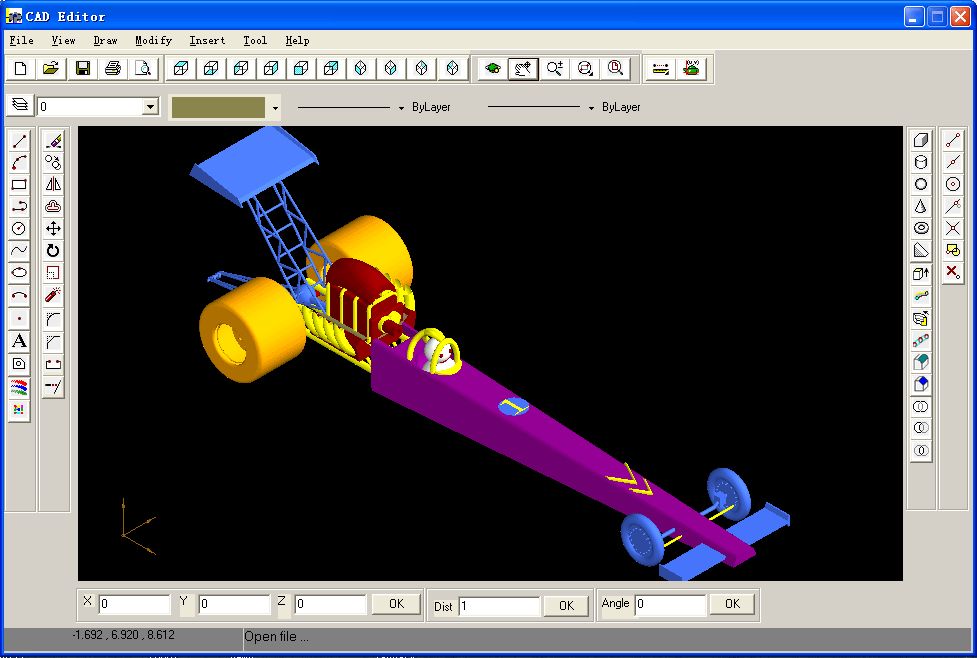

Screenshot of EWDraw 3D ActiveX 8.0

EWDraw 3D ActiveX 8.0


Author:

East Wind Sofware


Supported languages: English
Supported OS: Win2000 / Win7 x32 / WinVista / WinXP
Price: $779.00
EWDraw3D ActiveX is a powerful vector graphics ActiveX for 3D and 2D visualisation and animation. You can use it for CAD,CAM,GIS and others. The EWDraw3D ActiveX is based on Open CASCADE geometric kernel and openGL.
The library is realized as a run-time Windows 32 bit OCX (ActiveX control). Either can be used with applications written in the popular Visual IDE languages such as Visual Basic, Delphi, C++ Builder , Visual C++, VB.NET,C#

Version 8.0 August 1 2010
.Add drag/drop for 3D Solid
.Support modify a hole of 3D Solid
.Support set work plane to UCS
EnableUCS SetWorkPlane SetWorkPlaneBySolid SetWorkPlaneOrgPt
.Add GetWorkPlane to get information of current work plane
.Add UCS2WCS and WCS2UCS for convert a point between WCS and UCS.
.Add IsUCS to check current work plane is UCS or WCS
.Add EnableDisplayLenAng for display length and angle message when draw entity
.Add SendCommandStr for polar parameters
.Add DivideEnt function for get divide point
.Add ToDrawWedge to draw wedge
.Improve draw BSPline
.Improve Join
.Improve Pipe
.Improve 3D text for work plane
.Improve spire for work plane
.Fixed bug of ORTHO
.Fixed bug of OSNAP
.Fixed bug of orbit
download free trial

Free EWDraw 3D ActiveX download - 17.01 Mb
setup80.exe

Keywords: vector, graphics, 3D, 2D, powerful, CAD, GIS, CAM, visualisation, animation
