Reduce and optimize DXFfiles.

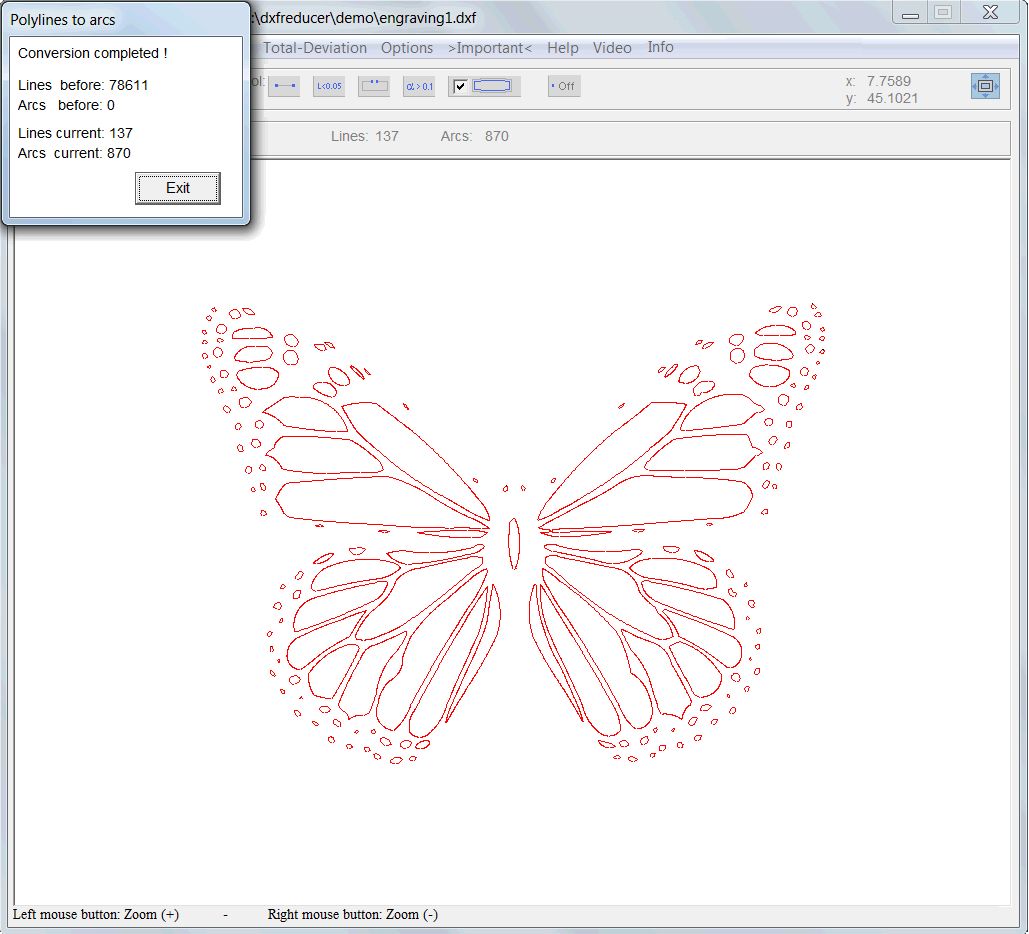

Screenshot of DXF R12 CNC Polyline Reducer 2.0

DXF R12 CNC Polyline Reducer 2.0


Author:

Dipl.-Ing. J.Schreckenberg


Supported languages: English, German
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / WinVista / WinVista x64
Price: $110.00
Software for post-processing of 2D - DXF graphics and drawings (DXF format 12 or lower) which are intended for CNC machining. For the use of CAD- and graphics data for CNC machining curve elements such as ellipses, bezier-curves and splines are often decomposed into polylines or into very small line segments. The software DXF R12 CNC Polyline Reducer allows the transformation of such small line segments into circular arcs and longer lines for an improved CNC machining. Also the program has a function for smoothing converted curves. In addition, the quality of scanned polyline graphics can be greatly improved. Functions: Reduction of the number of lines, convert small lines or polylines into arcs, smoothing of generated curve contours (Curves are converted in preferably tangential arcs and lines). Purpose: Improvement of workpiece quality, avoiding jerky movements during CNC machining, which can occur by too many small line segments, time-saving.
download free trial

Free DXF R12 CNC Polyline Reducer download - 8.15 Mb
reducer.exe

Keywords: dxf, cnc, router, optimizer, polyline, convert, to, arc, spline, converter, line, splines, smooth, laser, plasma, waterjet, cutting, mill, engraving
