Software for electrical diagrams
|
ProfiCAD 6.1.3
Author:
Supported languages: English, Chinese, Japanese, Czech, Russian, Slovak, Spanish, French, German, Hungarian, Italian, Portuguese, Polish
Supported OS: WinXP / Windows2003 / Windows Vista Starter / Windows Vista Home Basic / Windows Vista Home Premium / Windows
Price: $192.00
|
|
|
|
|
|

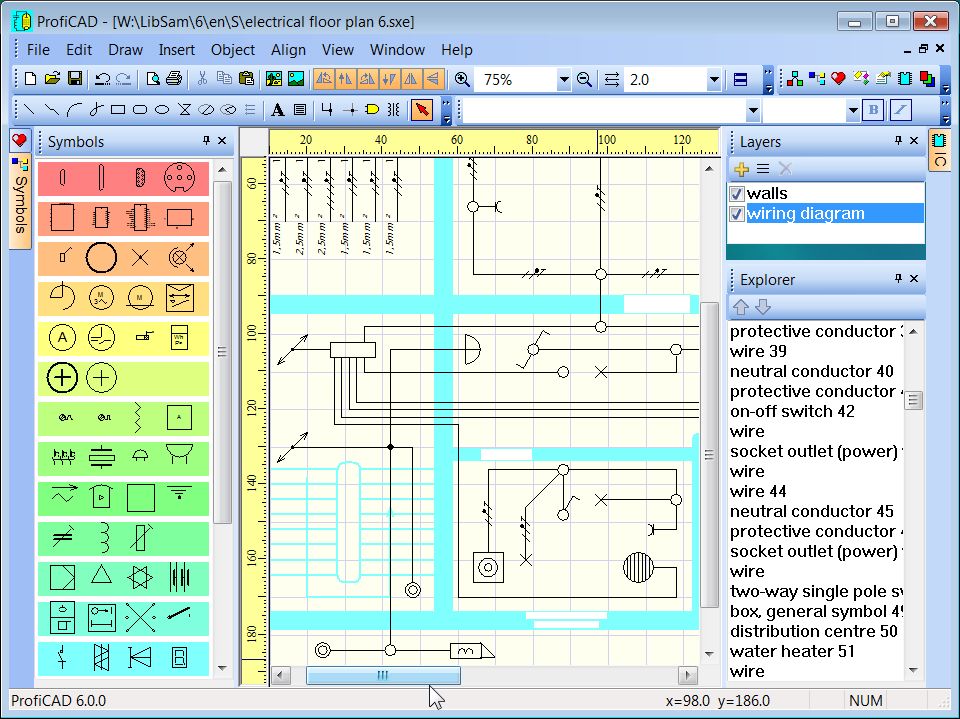

ProfiCAD is the quickest and easiest way to create electrical documentation and schematic diagrams. Although it is very easy to learn and use, it is a professional tool used by a wide range of customers.
easy to learn and use - just drag symbols onto the drawing
low system requirements - runs on any PC with Windows 2000 and higher
supports Unicode - can use any language, any technical symbol
ships with cca 700 symbols - new symbols can be easily created
downloads quickly, installs quickly, starts quickly, takes 5MB on hard drive and can be run from a flash drive
automatic update - always have the latest version
continuous numbering of symbols
intelligent renumbering of symbols when copying
automatic save - saves your documents automatically
generates netlist and bill of material
generates list of wires and calculates total of lengths
title blocks editor - create your owns for easy reuse
|
Free ProfiCAD download - 5.55 Mbsetup_full.exe
|
| Keywords:
electrical diagrams, schematics, block diagrams, electrical symbols, CAD, electrical wiring, title blocks |
|
|
|
|
|
