Converts VDAFS file to DXF and NC milling.
|
3D CNC milling 2.8
Author:
Supported languages: English
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Windows Server 2000 / Windows Server 2003 / Windows Server 2008 / Windows Server 2008r2 / Windows Server 2012 / Windows Tablet PC Edition 2005 / Windows Media Center Edition 2005 / WinVista / Windows Vista Starter / Windows Vista Home Basic / Windows Vista Home Premium / Windows Vista Business / Windows Vista Enterprise / Window
Price: $39.00
|
|
|
|
|
|

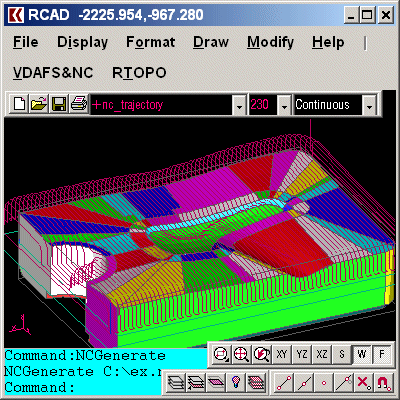

Converts VDAFS file to DXF file (in 3DFACE entities) and generates the NC program for milling a piece composed from 3DFACE entities, by some paths parallel to the machine axis. In VDAFS file will be interpreted the entities of type PSET, FACE (created from the entities of type SURF and CONS) and possibly those of type SURF. 3DFACE entities may result also from 3DFACE or 3DMESH entities from DXF files, from STL ASCII files generates by AutoCAD for solids and from RCAD "3DFace" command. 3DFace entities which describe the surface can be intersected or not perfectly joined! The milling cutter with semispherical head will be always above and tangent to the assembly of 3DFace entities! You can divide the piece into 2 parts through a horizontal separation plane or through a certain separation surface and you can calculate 3D area, volume and center of gravity of some bodies limited by 3DFACE entities. RCAD graphic core, distributed together with VDAFS to DXF&NC, provides OpenGL real-time orbit, pan, zoom, shading, lighting and motion path animation.
|
Free 3D CNC milling download - 823 Kbrcad.zip
|
| Keywords:
3D CNC milling, VDAFS to DXF, VDAFS converter, CAD-CAM, surfaces milling |
|
|
|
|
|
