Design of tension cylindrical springs

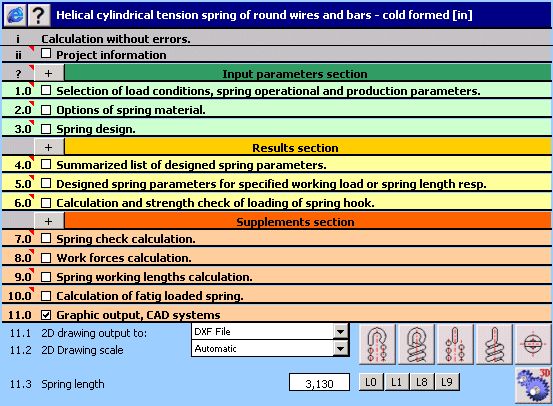

Screenshot of MITCalc Tension Springs 1.22

MITCalc Tension Springs 1.22


Author:

MITCalc


Supported languages: English, Chinese, ChineseSimplified, ChineseTraditional, Czech, Danish, Dutch, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovak, Spanish, Swedish, Turkish
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Wind
Price: $25.00
The calculation is intended for the purposes of geometric and strength designs of helical tension cylindrical springs made of wires and rods of circular sections, loaded with static loading. . Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the following main tasks:
- Automatic design of the spring.
- Selection of an optimal alternative of the spring design in view of strength, geometry and weight.
- Strength check of the spring.
- Support for Cold formed springs and Hot formed springs
- Calculation of working forces of a spring of known production and mounting dimensions.
- Calculation of mounting dimensions for a known loading and production parameters of the spring.
- The application includes a table of commonly used spring materials according to ISO, ASTM/SAE, DIN, BS, JIS
and others.
- Support of 2D and 3D CAD (AutoCAD, AutoCAD LT, IntelliCAD, Ashlar Graphite, TurboCAD, BricsCAD, ZWCAD, ProgeCAD, Autodesk Inventor, SolidWorks, SolidEdge, Creo).
The calculation is based on data, procedures and algorithms from specialized literature and standards EN 13906-2, DIN 2089-2, DIN 2097.
This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
download free trial

Free MITCalc Tension Springs download - 3.14 Mb
MITCalcSprTens01_64.exe

Keywords: Spring, springs, cylindrical spring, tension spring, helical spring, EN 13906-2, DIN 2089-2, DIN 2097, static strength check, dynamic strength check, CAD, DXF, 3D, 2D
