Designs of belt and chain transmission

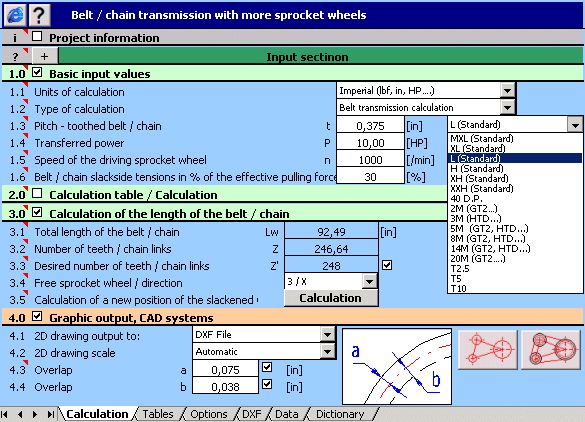

Screenshot of MITCalc - Multi pulley calculation 1.16

MITCalc - Multi pulley calculation 1.16


Author:

MITCalc


Supported languages: English, German, French, Italian, Spanish, Czech, Portuguese, Chinese Simplified, Chinese Traditional
Supported OS: Win95 / Win98 / WinME / WinNT 3.x / WinNT 4.x / Windows2000 / WinXP / Windows2003 / Windows Tablet PC Edition 2005 / W
Price: $18.00
The calculation is developed for geometrical designs of belt and chain transmissions with more sprocket wheels
(max. 15). Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the
following main tasks:
- Calculation of the necessary length of the belt (chain) using known positions and diameters of sprocket wheels
- Achieving the desired (table) length of the belt / chain using a change in the position of the selected sprocket
wheel.
- Calculation of geometry (angles of wrapping, numbers of teeth in engagement, axis distances, etc.)
- Calculation of the radial force acting on the sprocket wheel axis.
- Support of 2D CAD systems (AutoCAD, AutoCAD LT, IntelliCAD, TurboCAD??¦)This module is a part of MITCalc -
Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt
connection, shaft connection, tolerances and many others
download free trial

Free MITCalc - Multi pulley calculation download - 1.28 Mb
MITCalcMPulley01.exe

Keywords: belt, chain, belt transmission, chain transmission, sprocket, wheel, ANSIRMA IP-24, 1983, DIN 7721, DIN ISO 5296, ISO 5295
