Network management integration with SCADA

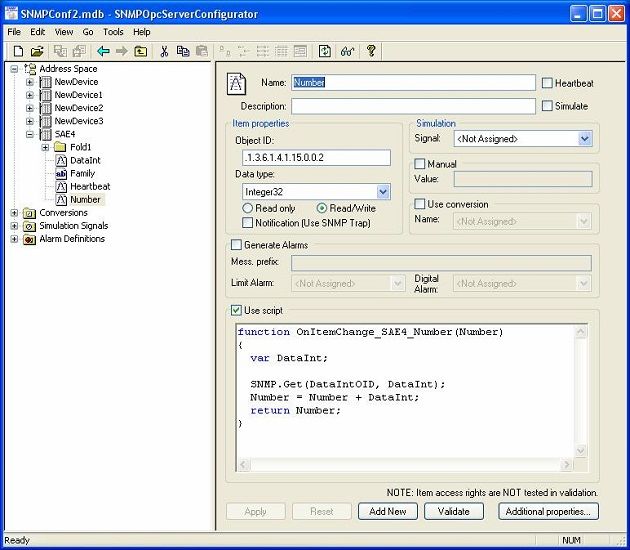

Screenshot of SAEAUT SNMP OPC Server Professional 2.07.00

SAEAUT SNMP OPC Server Professional 2.07.00


Author:

SAE - Automation, s.r.o.


Supported languages: English, Slovak
Supported OS: WinXP / Windows2000 / Windows2003 / Windows Vista Business / Windows Vista Business x64
Price: $1960.00
Solution for integration of the computer network management and data pre-processing with SCADA using OPC interface or Web Services

It has the following features:

- implemented OPC specifications:OPC DA 3.0, 2.05,1.0, OPC XML DA, OPC Alarms and Events Version 1.1 and 1.0
- implemented protocols: SNMPv2c, SNMPv1
- using SNMP commands GET, SET and traps
- using ping to manage devices without running SNMP agent and displaying of round trip time as one OPC variable
- tags in address space of the OPC server are defined using MIB object identifier (Object ID), for example .1.3.6.1.4.1.2681.1.2.102; defined Object ID's can be validated by input in OPC configurator
- the possibility to manage unlimited number of devices with running SNMP agent
- pre-processing data using JScripts
- support of global JScript variables to enable for example implementation of historical data processing, filtration or other algorithms
- implementation of MIB Browser, which scans SNMP manageable device for its SNMP variables that correspond to MIB objects
- IP Scanner, which is used for scanning computer network communities in defined IP area
- logging of SAEAUT SNMP OPC Server activities to log-files

Installation package contains:

- SNMP OPC Server configurator with built in JScript editor
- runtime application (SNMP OPC Server process)
- OPC XML-DA wrapper
- source code examples for OPC test clients (written in VB6 and VB.NET) for the communication with SNMP OPC server, using OPC DA3 interface or Web Services
download free trial

Free SAEAUT SNMP OPC Server Professional download - 13.49 Mb
snmp-opc-server-prof.zip

Keywords: SAE - Automation, SNMP OPC Server, network management, OPC XML, OPC DA, OPC AE, software, industrial, industrial ethernet, TCP, IP, ethernet, OPC, Server, SNMP, network monitoring, hmi, ethernet network, JScript, SCADA
