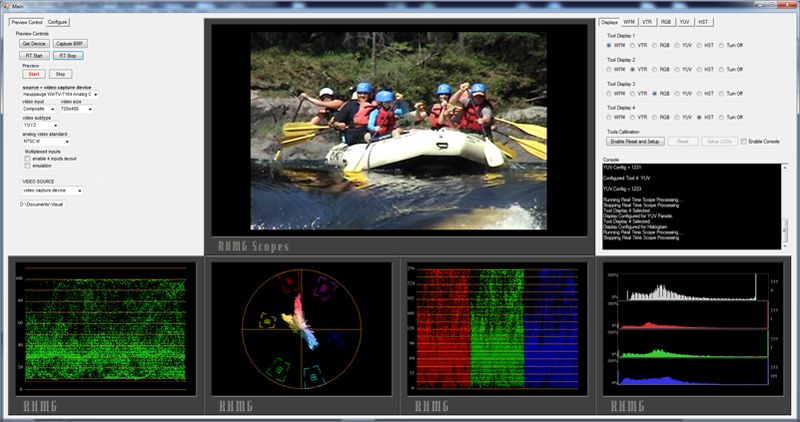

Screenshot of MultiScopeLite 1.0.1.2

MultiScopeLite 1.0.1.2


Author:

Rumble House Media Group Inc


Supported languages: English
Supported OS: WinXP / Win7 x32 / Win7 x64 / Windows 8
Price: $69.95
Software Waveform monitor and Vectorscope now available.

A set of video calibration and monitoring equipment like a Waveform Monitor and Vectorscope have long been a necessary equipment standard for television broadcast studios and mobile facilities alike. MultiscopeLite now offers these studio grade scopes plus other ancillary video tools in a software suite that provides a simpler, portable and more compact rack of software based video equipment. A properly configured Windows based laptop or a desktop computer will work.

MultiscopeLite includes a combination YUV-RGB parade scope and a histogram scope as well as the staple Wavefrom Monitor and Vectorscope. A high resolution video monitor that can be set to either 4:3 or 16:9 aspect ratios rounds out the user interface. Setup is easy and alows the user to enable many features if they so choose. All scopes run together in real-time, that is the video stream is deconstructed, processed and displayed as the input video plays.

MultiscopeLite is compatible with many recognized video captures cards, whether they be consumer or industrial grade. Products from BlackMagic Design (Decklink - Shuttle, Intensity, etc), Microsoft, Hauppauge, Avermedia, Logitech, AJA and Grass Valley to name a few. Video sources from PCI based capture cards, ethernet interfaces, USB based cameras and now Thunderbolt based devices will work provided the video drivers are Microsoft compatible.

We have included the feature of allowing two LCD viewing resolutions of 1980x1080 and 1280x720 to be set, taking advantage of the fullest screen areas of most high resolution LCD display monitors.

MultiscopeLite is Windows compatible and will run on 32 bit or 64 bit Windows XP, Windows 7 and Windows 8 platforms.
download free trial

Free MultiScopeLite download - 5.84 Mb
MultiScope_Lite-Trial-1.0.1.2.exe

Keywords: video, broadcast, IRE, BT.709, BT.601, dynamic range, luma, YUV, Directshow, video monitoring, video calibration, vectorscope, YUV parade, digital video, waveform monitor, RGB parade, histogram, high definition, standard definition, 169, 43
