PloView is HPGL/Vector/Image viewer.

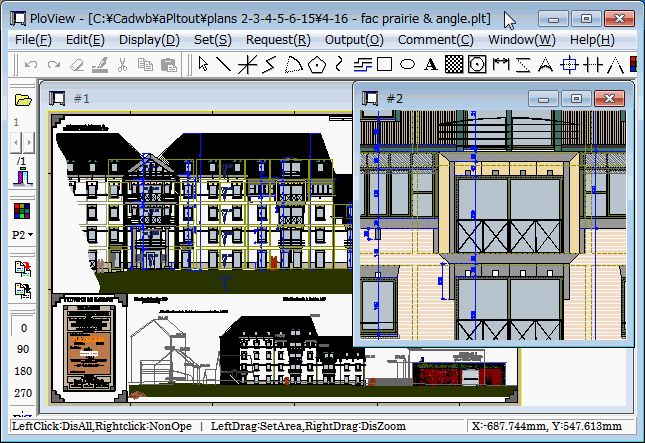

Screenshot of PloView 10.0

PloView 10.0


Author:

Isoplotec Corporation


Supported languages: English
Supported OS: Win7 x32 / Win7 x64 / WinVista / WinVista x64 / WinXP
Price: $70.00
PloView is viewer for viewing drawing of HPGL/Vector/image file.
And, it has about the same powerful input and edit function as 2D-CAD.
(1) File: Support to many file formats
Input: HPGL,HP-GL/2,HP RTL,PDF,DXF,DWG,GERBER,NC-Drill,IGES,EMF,
TIFF,JPEG,Bitmap,PCX,FPX,GIF,PNG,CMT
Output:HPGL,HP-GL/2,HP RTL,PDF,DXF,DWG,IGES,EMF,TIFF,JPEG,Bitmap,
PCX,FPX,GIF,PNG,Printer,Plotter,WMF,PS,EPS,SVG,XPS,PCL,CMT
Black / white and color copy to clipboard.
(2) Display
- Color and width change of line, ???black and white??? / ???color??? change,
background color change, pen ON/OFF
- Display mode (Copy/Merge/Xor/data) change
- Rotation, mirror, grid displaying
- Thumbnail display
- Multi-page correspondence
- Vector font / TrueType font change of text font
(3) Request
- Measurement function of coordinates, length, area, line width, and angle
- Search text
- Connected line search, the total line length measurement
(4) Edit drawing (Comment function)
* File:
- New create
- Input file of (1)
- Save to file of (1)
* Insert:
Figure kind:
Polyline, Arc, Circle, Horizontal line, Vertical line, Slanting line,
Opposite side angle line, Regular polygon, Ellipse, Offset line,
Free curve, Cloud shape line, Spline, Surface, Rectangle, Long circle,
Text, Bitmap, Macro,
Dimension (Horizontal, Vertical, Parallel, Angle, Radius, Diameter)
Insert Coodinates at Key, Insert Same Point, Next Same Point,
Insert-Grid ON/OFF
* Set:
Layer: 1..20, Set property
* Edit:
Select (individual, rectangular area, polygon area selecting),
Move copy, Delete, Divide/Delete/Move/RouteChange polyline section,
Delete line in selected area boundary, Trim, Change property,
Change vertex R, Chamfer, Connect Line, Rotate copy, Scale Up/Down copy,
Macro-izing, Macro breakup, ReDo, UnDo
download free trial

Free PloView download - 8.39 Mb
PloView100.zip

Keywords: PDF, HPGL, IMAGE, VIEWER, CAD, PloComp, PloView, DXF, DWG, GERBER, NC-Drill, TIFF, JPEG, BITMAP, IGES, EMF, PCX, FPX, PNG
