Simulating 2~4 Axis 3D CNC pipe cutting

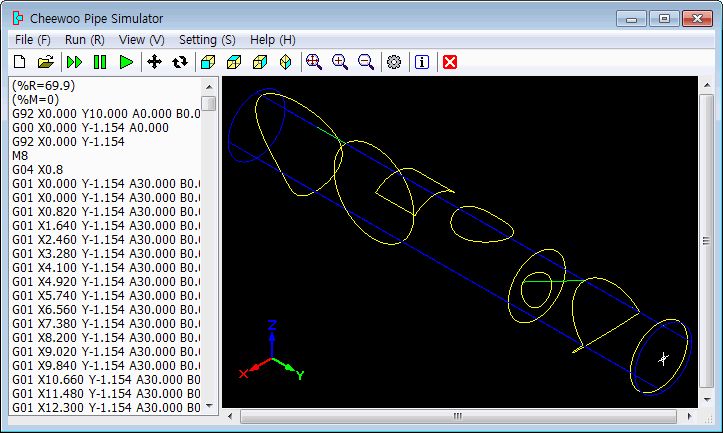

Screenshot of Cheewoo Pipe Simulator 2.1.1005.1007

Cheewoo Pipe Simulator 2.1.1005.1007


Author:

Cheewoo Engineering


Supported languages: English, Korean
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / Windows2000 / Windows2003 / Wind
Price: $399.00
Simulating 2~4 Axis 3D CNC pipe profile cutting path, lead-in/Lead-out and cutting sequence from the NC code file. Showing NC block progress sequence from 3D display window. Supporting NC block progress sequence speed adjustment for easy checking. Supporting zoom-in, zoom-out, panning, rotation, front view, top view, side view, and bird's eye view for user to check 3D NC cutting path easily and conveniently. 3D NC cutting path display window and NC code list window are automatically synchronized. Adding pipe radius and circular direction output mode information in the NC file as a header, it is possible to set pipe raduis and circular direction output mode automatically. Requires Windows 2000 or above, RAM512 MB,10MB HDD or above.
download free trial

Free Cheewoo Pipe Simulator download - 2.64 Mb
cwppsm_setup.zip

Keywords: Pipe CNC Cutting, NC file, Simulation, Simulator
