Data Acquisition & Control plus HMI / SCADA.

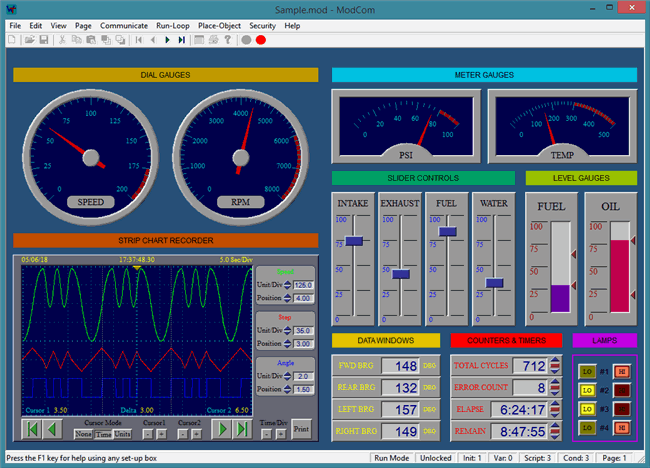

Screenshot of ModCom 15.30.0

ModCom 15.30.0


Author:

Weeder Technologies


Supported languages: English
Supported OS: Win2000 / WinXP / Win7 x32 / Win7 x64 / Windows 8 / Windows 10 / WinServer / WinOther / WinVista / WinVista x64
Price: Free
Free Windows software for Data Acquisition & Control, HMI / SCADA, Industrial Automation, Home Automation, Process Control, Test & Measurement, Data Logging, etc. ModCom is a GUI-based HMI development platform created with the non-programmer in mind. Custom screens such as what's shown in the picture can be setup very quickly and easily with little or no programming skills. Ready to run, built-in features include the following:

Instrument-Gauges and Data-Windows can read external sensors and show voltage, temperature, pressure, RPM, rotary encoder position, etc. Push-Buttons can turn on/off external electrical devices or can operate their own buttons and switches. Slider-Controls can adjust output voltages by sliding the knob up or down with the mouse. Event-Counters can count pulses, external contact closures, or internal events. Event-Timers can measure the time between external switch or contact closures. On-Screen-Lights can be triggered by external contact closures or internal alarms. PI-Controllers operate as an automatic process control system that can regulate temperature, pressure, flow rate, tank level, etc.

Chart-Recorders can plot the data from any of the screen objects onto a graph. Log-to-File function can send the data from any of the screen objects to a file. DDE (Dynamic Data Exchange) can link any of the screen objects to cells in an Excel spreadsheet. Log-to-Web function can upload the contents of the log file to a web page to be viewed using a smart phone. Custom program Scripts can be written by the user to perform complex tasks in the background. Conditional-Statements can watch for and act upon specific conditions. Keypad-Entry allows the operator to input data using a touchscreen or mouse. Send emails automatically containing the current value of any Screen Objects. Print labels automatically containing the current value of any Screen Objects and include a bar-code if needed.
download free trial

Free ModCom download - 14.28 Mb
modcom.zip

Keywords: weeder technologies, ModCom, data acquisition control, HMI SCADA, industrial automation, factory automation, home automation, process control, hmi software, scada software, test measurement software, daq software, chart recorder, data logging
